REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera

Learn more about the REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera. Includes features, pricing, and FAQs.

Updated on February 15th, 2019

The SMB Guide is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Learn more

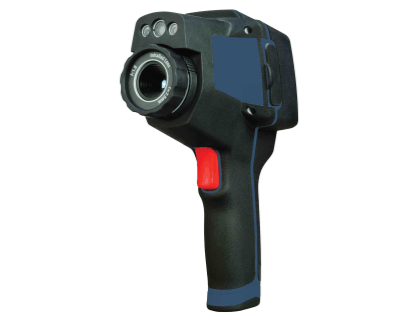

The REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera is a thermal camera with an LCD touch screen, high thermal sensitivity, built-in laser, and digital camera.

Buy Now

REED Instruments, R2100 160 x 120 px Resolution Thermal Imaging Camera

Buy on Amazon

Infrared resolution of 19,200 pixels.

3.5" color TFT LCD touchscreen.

Built-in laser and white LED flashlight.

Can detect temperatures between -4 to 752°F.

REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera Key Features:

Features

Description

IR Resolution

160 x 120 pixels

Field of View

29.8 x 22.6°

Detector Type

Uncooled microbolometer

Thermal Sensitivity (NETD)

<0.08°C (80mK)

Image Capture Frequency

50Hz

Focus

Manual

Temperature Range

-20 to 400°C(-4 to 752°F)

Accuracy

±2°C (±3.6°F) or ±2% of reading

Image Modes

Infrared/visual camera/infrared overlay/picture in picture

Storage Medium

4GB micro SD card

Interface

USB-mini, audio, composite video (PAL and NTSC), Micro SD slot

Drop Test

2m

Encapsulation

IP65

Power Supply

7.4V lithium polymer battery

Battery Life

4 hours

Dimensions/Weight

243 x 103 x 160mm/920g

Reed Instruments R2100 160X120Px Resolution Thermal Imaging Camera
REED Instruments R2100 Thermal Imaging Camera Review:

Pros: Auto lens recognition, high thermal sensitivity, HD infrared images.

Cons: Not WiFi enabled, no auto-focus, no reporting software.

Bottomline: Great commercial and industrial thermal camera designed to make your work easier and more efficient.

REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera Pricing:

The REED Instruments R2100 thermal camera retails for $3,495.00.

REED Instruments, R2100 160 x 120 px Resolution Thermal Imaging Camera Box Contents:

  • R2100 Thermal Imaging Camera (160 x 120).
  • 7.5mm Lens.
  • Lens Cap.
  • Micro SD Memory Card.
  • Video Output Cable.
  • Headset.
  • USB Cable.
  • Hood.
  • Hard Carrying Case.
  • Tripod Stand.
  • Shoulder Strap.
  • Two Batteries.
  • Charger.
  • AC Adapter.
  • User Manual.
  • Software CD (Multiple languages).

REED Instruments R2100 160 x 120 px Resolution Thermal Imaging Camera FAQs:

What is the temperature range of the REED R2100 Thermal Imaging Camera?

The R2100 camera measures temperature between -4°F and 752°F, and features a thermal sensitivity of <0.08°C (80mK).

What type of detector does the REED Instruments Thermal Imaging Camera have?

The REED R2100 has a Focal Plan Array (FPA) uncooled microbolometer detector with an IR resolution of 160 X 120.

Where can I buy the REED R2100 Thermal Imaging Camera?

You can buy the REED Instruments R2100 Thermal Imaging Camera by clicking on the link above, or from sites like Megadepot.

What are some REED Instruments R2100 Thermal Imaging Camera alternatives?
