The Flir TG167 Spot Thermal Camera is a thermal imaging camera that features Flir's Lepton micro thermal sensor allowing you to easily find unseen hot and cold spots inside homes and buildings.

Buy Now

Flir TG167-NIST Thermal Camera, 9Hz with NIST

Buy on Amazon

Provides image clarity on tiny details.

Intuitive to operate.

Designed for the harshest environments.

With NIST calibration.

Flir TG167 Spot Thermal Camera Features:

Feature

Description

Detector

Focal plane array (FPA), uncooled microbolometer

IR Resolution

80 × 60 pixels

Laser

Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger

Storage

8 GB MicroSD Card (supports up to 32 GB)

Memory Type

Micro SD card

Spectral Range

8–14 µm

Tripod Mounting

1/4 in.-20 on handle bottom

Image Storage Capacity

75 000 pictures with included 8 GB Micro SD card

Saved image format

Bitmap (BMP) image with temperature and emissivity

Camera size (L x W x H)

186 mm x 55 mm x 94 mm (7.3 in. x 2.2 in. x 3.7 in.)

Camera weight incl battery

0.312 kg (11 oz.)

Color palettes

Hot Iron, Rainbow, Grayscale

Viewing Angle

25° x 19.6°

Focus

Focus free

Gallery

8549

Image Frequency

9Hz

Minimum Focus Distance

0.1 m (4 in.)

Minimum Measurement Distance

26 cm (10 in.)

Accuracy

±1.5% or 1.5°C (2.7°F)

Center spot

Yes

Object Temperature Range

–25 to +380°C (–13 to +716°F)

Thermal Sensitivity/NETD

< 150 mK

Display

2.0 in. TFT LCD

Battery operating time

More than 5 hours of continuous scanning with lasers

Battery type

Rechargeable Li ion battery

Battery voltage

3.7 V

Charging system

Battery is charged inside the camera

Charging Time

4 hours to 90%, 6 hours to 100%

Power Management

Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.

Battery charge life

30 days minimum

Humidity (Operating and Storage)

0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))

Operating Temperature Range

-10 to +45°C (+14 to 113°F)

Storage Temperature Range

-30 to +55°C (-22 to 131°F)

Includes

Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation

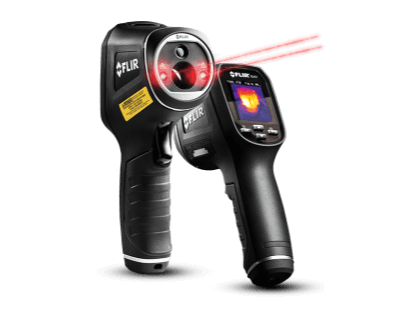

FLIR TG167 Spot Thermal Camera
Flir TG167 Spot Thermal Camera Review:

Pros: Easy to use, Flir Lepton micro thermal sensor allows you to see temperature as a thermal image, provides accurate readings.

Cons: Low resolution, no WiFi or digital camera feature.

Bottomline: Affordable, quality thermal imager for electricians, or anyone working in manufacturing, construction etc.

Buy Now

Flir TG167-NIST Thermal Camera, 9Hz with NIST

Buy on Amazon

Provides image clarity on tiny details.

Intuitive to operate.

Designed for the harshest environments.

With NIST calibration.

Flir TG167 Spot Thermal Camera Pricing:

The Flir TG167 Spot Thermal Camera retails for $379.99.

Flir TG167 Spot Thermal Camera FAQs:

What is the Flir TG167 Spot Thermal Camera's field of view?

The Flir TG167 has a 25° field of view (FOV) providing exceptional image clarity on the tiniest details, including small connectors and wires.

How can I transfer data and images with the Flir TG167 Spot Thermal Camera?

You can easily save and store images and data for reporting on the Flir TG167, and download images fast via USB or a removable micro SD card. The camera comes with an 8GB Micro SD card and supports up to 32GB.

Where can I buy the Flir TG167 Spot Thermal Camera?

You can buy the Flir TG167 online from sites like Amazon, or directly from Flir.com.

What are some Flir TG167 Spot Thermal Camera alternatives?
