Flir E6 Thermal Imaging IR Camera with Wi-Fi and CM82 True RMS Power Clamp Meter

Learn about the Flir E6 Thermal Imaging IR Camera with Wi-Fi with CM82 True RMS Power Clamp. Includes features, pricing, and FAQs.

Updated on February 1st, 2019

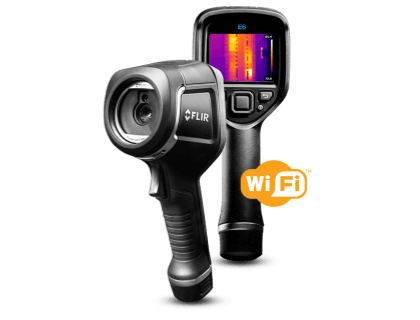

The Flir E6 Thermal Imaging IR Camera is a thermal imaging camera for thermal inspection in buildings. The Flir E6 can connect to WiFi and features MSX thermal images, crisp resolution, and a focus-free lens.

Buy Now

Flir E6-CM82 E6 Thermal Imaging IR Camera w/ Wi-Fi & CM82

Buy now on MegaDepot

Buy Now

Wi-Fi connectivity.

Crisp resolution.

One simple button navigation.

Enhanced job-site reliability and long-haul durability.

Flir E6 Thermal Imaging IR Camera with WiFi Features:

Feature

Description

Detector

Uncooled microbolometer

IR Resolution

160 × 120 pixels

Spectral Range

7.5–13 µm

Display

3.0 in. 320 × 240 color LCD

Camera size (L x W x H)

244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)

Camera weight incl battery

0.575 kg (1.27 lb.)

Viewing Angle

45° × 34°

Focus

Focus free

Image Adjustment

Automatic/Manual

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

5.2 mrad

Digital Camera Resolution/FOV

640 × 480/55° × 43°

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)

Isotherm

Above/below/interval

Object Temperature Range

–20°C to +250°C (–4°F to +482°F)

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Spot Meter

Center spot; box with min./max.

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK

Spotmeter and Area

Center spot; box with min./max.

EMC

WEEE 2012/19/EC •RoHs 2011/65/EC, C-Tick •EN 61000-6-3, EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to +50°C (+5°F to +122°F)

Radio Spectrum

ETSI EN 300 328, FCC 47 CSR Part 15, RSS-247 Issue 2

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to +70°C (–40°F to +158°F)

Vibration

2 g (IEC 60068-2-6)

Emissivity table/correction

Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop

IP 54 (IEC 60529)/2m (6.6 ft.)

AC Operation

AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface

USB Micro: Data transfer to and from PC and Mac device

WiFi

Standard: 802.11 b/g/n, Frequency range: 2400–2480 MHz, 5150–5260 MHz, Max. output power: 15 dBm

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management

Automatic shut-down.

Battery type & operating time

Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use.

Set-up Commands

Local adaptation of units, language, date and time formats.

Certifications

UL, CSA, CE, PSE and CCC.

Packaging Size

385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)

Flir CM82 True RMS Power Clamp Meter Features:

Feature

Description

AC VFD Voltage

Range 1000 V / Basic Accuracy +/- 1%

AC/DC Current

Range 600 A / Basic Accuracy +/- 2%

AC/DC Voltage

Range 1000 V / Basic Accuracy +/- 1% / 0.7%

Active Power

Range 10 kW to 60 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%

Capacitance

Range 3.999 mF Max / Basic Accuracy +/- 1.9%

Category Rating

CAT IV-600V, CAT III-1000V

Continuity Threshold

Range 30 Ω / Basic Accuracy +/- 1%

Diode Test

Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V

Frequency

Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%

Harmonics

Range 1st-25th Order / Basic Accuracy +/- 5%

Inrush Current

Range 600 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%

Resistance

Range 99.99 kΩ Max / Basic Accuracy +/- 1%

Total Harmonic Distortion

Range 0.0 to 99.9% / Basic Accuracy +/- 3%

Battery type

6 x AAA

Jaw Opening

37 mm (1.45", 1000MCM)

Warranty

Limited Lifetime

Flir E6 Thermal Imaging IR Camera with WiFi Pricing:

The Flir E6 Thermal Imaging IR Camera retails for $1,999.00.

Flir E6 Thermal Imaging IR Camera with WiFi FAQs:

Flir E6 Thermal Imaging IR Camera with WiFi Box Contents:

  • Infrared camera.
  • Hard transport case.
  • Battery (inside camera).
  • USB cable.
  • Power supply/charger with EU, UK, US and Australian plugs.
  • Printed documentation.

What is the resolution of the Flir E6 Thermal Imaging Camera?

The Flir E6 has a 19,200 pixel detector with ±2% accuracy, offering the best image clarity during electrical or mechanical inspections.

How easy is it to use the Flir E6 Thermal Imaging Camera?

The Flir E6 features a focus-free lens and simple button navigation leading to on-screen settings, which makes this camera easy to operate when paired with the industrial-grade Flir CM82 power clamp.

Where can I buy the Flir E6 Thermal Imaging IR Camera?

You can purchase the Flir E6 from sites like Amazon and eBay, or directly from Flir.com.
