Flir E6 Thermal Imaging IR Camera with Wi-Fi Reviews

Read reviews, pricing information, features and frequently asked questions for the Flir E6 Thermal Imaging IR Camera with Wi-Fi.

Updated on February 15th, 2019

The SMB Guide is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Learn more

The Flir E6 Thermal Imaging IR Camera with Wi-Fi is a thermal camera that can be used for thermal imaging in a variety of maintenance applications. Images from the camera can be shared on mobile devices via your wireless internet connection.

Buy Now

Flir E6 Thermal Imaging Infrared Camera w/ Wi-Fi

Buy on Amazon

Wi-Fi connectivity.

Crisp resolution.

One simple button navigation.

Flir E6 Thermal Imaging IR Camera with Wi-Fi Pricing:

Model

List Price

FLIR E6 WiFi

$1,979.00

FLIR E53

$4,999.00

FLIR E8 WiFI

$2,999.99

FLIR E5 WiFi

$1,199.00

FLIR E4 WiFi

$995.00

FLIR C3

$699.00

FLIR C2

$499.00

FLIR One Pro (Micro USB)

$399.99

FLIR One Pro LT (Micro USB)

$299.99

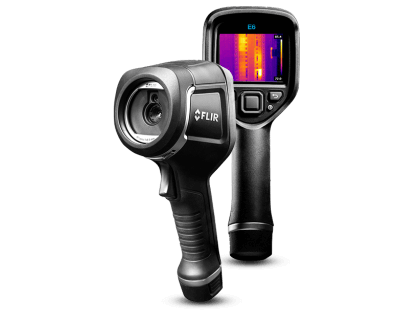

Flir E6 With WiFi
Flir E6 Thermal Imaging IR Camera with Wi-Fi Summary:

Pros: Wi-Fi connection. Automatic focus. Rugged design.

Cons: E6 model is expensive. No flash function.

Bottomline: An accurate, easy to use camera for thermal imaging. The design makes the camera both portable and durable on the job site.

Flir E6 Thermal Imaging IR Camera with Wi-Fi Features:

Feature

Description

Detector

Uncooled microbolometer

IR Resolution

160 × 120 pixels

Spectral Range

7.5–13 µm

Display

3.0 in. 320 × 240 color LCD

Camera size (L x W x H)

244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)

Camera weight incl battery

0.575 kg (1.27 lb.)

Viewing Angle

45° × 34°

Focus

Focus free

Image Adjustment

Automatic/Manual

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

5.2 mrad

Digital Camera Resolution/FOV

640 × 480/55° × 43°

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)

Isotherm

Above/below/interval

Object Temperature Range

–20°C to +250°C (–4°F to +482°F)

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Spot Meter

Center spot; box with min./max.

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK

Spotmeter and Area

Center spot; box with min./max.

EMC

WEEE 2012/19/EC, RoHs 2011/65/EC, C-Tick, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to +50°C (+5°F to +122°F)

Radio Spectrum

ETSI EN 300 328, FCC 47 CSR Part 15, RSS-247 Issue 2

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to +70°C (–40°F to +158°F)

Vibration

2 g (IEC 60068-2-6)

Emissivity table/correction

Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop

IP 54 (IEC 60529)/2m (6.6 ft.)

AC Operation

AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface

USB Micro: Data transfer to and from PC and Mac device

WiFi

Standard: 802.11 b/g/n, Frequency range: 2400–2480 MHz, 5150–5260 MHz. Max. output power: 15 dBm

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management

Automatic shut-down

Battery type & operating time

Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

Set-up Commands

Local adaptation of units, language, date and time formats

Certifications

UL, CSA, CE, PSE and CCC

Packaging Size

385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)

Buy Now

Flir E6 Thermal Imaging Infrared Camera w/ Wi-Fi

Buy on Amazon

Wi-Fi connectivity.

Crisp resolution.

One simple button navigation.

Flir E6 Thermal Imaging IR Camera with Wi-Fi Box Contents:

  • Infrared camera.
  • Hard transport case.
  • Battery (inside camera).
  • USB cable.
  • Power supply/charger with EU, UK, US and Australian plugs.
  • Printed documentation.

Flir E6 Thermal Imaging IR Camera with Wi-Fi FAQs:

How much does the Flir E6 Thermal Imaging IR Camera with Wi-Fi cost?

The Flir E6 WiFi camera retails for $1,979.00.

How can I transfer images from the Flir E6 to my mobile device?

You can add and manage images on your mobile device by using the Flir mobile app. The app is available in the App Store and on Google Play.

Can the camera be used to detect leaks in a roof?

The E6 is designed to detect variations in temperature, so you could only use it to detect a leak if the water was warmer or cooler than the roofing material.

How do you charge the Flir E6 thermal camera?

The camera comes with a charger that you can plug into a regular power outlet.

What are some Flir E6 Thermal Imaging IR Camera alternatives?

Flir E6 Thermal Imaging IR Camera with Wi-Fi Reviews:

Source

Review

Dchase - roofersclub.com

This is a really nice unit. A friend has one of these for his company and they put it to good use every week. Flir is a top company and they stand behind their products.

Northern50 - maintenance.org

I use an E6 which has less resolution than the E8 but still has the MSX. I really like it for day to day work. It's also fast and doesn't require much if any setup to just " point and shoot". If you purchase one you can retire your old IR laser spot thermometer as you will never use it again.
