Flir E5 Infrared Camera with WiFi and MR77 Moisture Psychrometer

Learn more about the Flir E5 Infrared Camera with WiFi and MR77 5-in-1 Moisture Meter with Meterlink ®. Includes features and FAQs.

Updated on July 16th, 2019

The SMB Guide is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Learn more

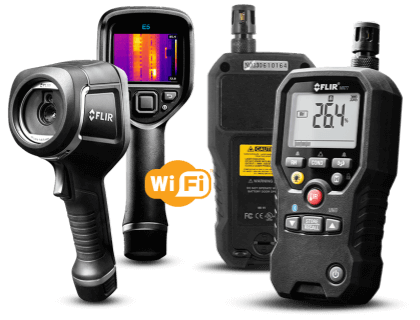

The Flir E5 Infrared Camera with WiFi and MR77 5-in-1 Moisture Meter with Meterlink ® is a thermal imaging camera that also comes with a moisture meter. These two products can be used together to detect leaks and see thermal images.

Buy Now

Flir E5-MR77 E5 Thermal Imaging IR Camera w/ Wi-Fi & MR77

Buy it now on MegaDepot

Buy Now

Professional measurement features.

Offers the best image clarity with crisp resolution.

One simple button navigation.

Key Features:

Feature

Description

Detector Type

Uncooled microbolometer

IR Resolution

120 × 90 pixels

Spectral Range

7.5–13 µm

Camera size (L x W x H)

244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in.)

Camera weight incl battery

0.575 kg (1.27 lb.)

Color palettes

Black & white, iron, and rainbow

f-number

1.5

Viewing Angle

45° × 34°

Focus

Focus free

Image Adjustment

Automatic adjust/lock image

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

6.9 mrad

Digital Camera Resolution/FOV

640 × 480/55° × 43°

Display

3.0 in. 320 × 240 color LCD

Charging system

Battery is charged inside the camera or in specific charger

Charging Time

2.5 hours to 90% capacity in camera; 2 hours in charger

Power Management

Automatic shut-down

Battery type & operating time

Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)

Isotherm

Above/below/interval

Object Temperature Range

–20°C to +250°C (–4°F to +482°F)

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Spot Meter

Center spot; box with min./max.

Thermal Sensitivity/NETD

<0.10°C (0.27°F) / <100 mK

Spotmeter and Area

Center spot; box with min./max.

AC Operation

AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface

SB Micro: Data transfer to and from PC and Mac device

EMC

WEEE 2012/19/EC, RoHs 2011/65/EC, C-Tick, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to +50°C (+5°F to +122°F)

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to +70°C (–40°F to +158°F)

Vibration

2 g (IEC 60068-2-6)

Emissivity table/correction

Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop

IP 54 (IEC 60529)/2m (6.6 ft.)

File Formats

Standard JPEG, 14-bit measurement data included

Set-up Commands

Local adaptation of units, language, date and time formats

Certifications

UL, CSA, CE, PSE and CCC

Packaging Size

385 x 165 x 315 mm (15.2 x 6.5 x 12.4 in.)

WiFi Distance:

  • Standard: 802.11 b/g/n
  • Frequency range: 2400–2480 MHz, 5150–5260 MHz
  • Max. output power: 15 dBm

Radio Spectrum:

  • Standard: 802.11 b/g/n
  • Frequency range: 2400–2480 MHz, 5150–5260 MHz
  • Max. output power: 15 dBm

Key Features:

Feature

Description

Gallery

17561

Sensor Temperature

Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C

IR Distance to Spot Ratio

8 : 1 in

IR Emissivity

Range 0.95 (fixed)

Pin Moisture

Range 0 to 99% WME / Basic Accuracy +/- 5%

Pinless Moisture

Range 0 to 99.9 / Basic Accuracy Relative

Pinless Moisture Depth Max

0.75 inches (19mm)

IR Temperature

Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5%

Drop test

6.5 ft (2 m)

Relative Humidity

Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH

Vapor Pressure

Range 0 to 20.0kPA / Basic Accuracy +/- 2%

Bluetooth range max

32 ft (10 m)

Packaging Size

13.5 cm x 11 cm x 30 cm (5.3? x 4.8? x 11.8?)

Warranty

Limited Lifetime

Certifications

CE, FCC

Flir E5 with WiFi Infrared Camera and MR77 Moisture Psychrometer
Review:

Pros: Rechargeable battery. Lifetime warranty on the moisture meter. Wi-Fi connectivity.

Cons: No touchscreen feature.

Bottomline: A great package for advanced moisture detection as the meter and the thermal camera can be used together for more accurate results.

Pricing:

The Flir E5 Camera and MR77 Moisture Meter cost $1,898.99.

Box Contents:

  • Infrared camera.
  • Hard transport case.
  • Battery (inside camera).
  • USB cable.
  • Power supply/charger with EU, UK, US and Australian plugs.
  • Printed documentation.

FAQs:

How do I upload images from the Flir E5 camera to my smartphone?

You can upload images to the Flir app using your wireless connection, and then access them via the Flir app on your smartphone.

Learn more about the Flir E5 camera.

How long does the battery in the Flir E5 last?

The rechargeable battery lasts for approximately four hours of continuous use.

Read more about the Flir E5 camera.

What sensors does the Flir E5 Infrared camera have?

  • An integrated pinless moisture sensor.
  • A pin-type probe.
  • A temperature and relative humidity sensor.
  • An IR thermometer.

See more details on the Flir E5 camera.

What is the Bluetooth range of the MR77 Pinless Moisture Psychrometer?

The moisture meter has a maximum range of 32 feet or 10 meters.

Get more information on the Flir E5 camera.
