Flir E5-NIST Thermal Imaging IR Camera w/ Wi-Fi & MSX

Learn more about the Flir E5 thermal camera with key features, pricing information, and frequently asked questions.

Updated on July 17th, 2019

The SMB Guide is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Learn more

The Flir E5-NIST Thermal Imaging IR Camera with Wi-FI & MSX is a portable thermal imaging camera. The E5 can connect to a smartphone via a wireless internet connection and has several thermal imaging modes.

Buy Now

Flir E5-NIST Thermal Imaging IR Camera w/ Wi-Fi & MSX

Buy on Amazon

Professional measurement features.

Offers the best image clarity with crisp resolution.

One simple button navigation.

With NIST calibration.

Key Features:

Feature

Description

Accuracy

±2% or 2°C

Wi-Fi

Peer-to-peer or network

Resolution

10800(120 x 90)

Thermal Sensitivity

<0.10°C

Temperature Range

-4°F to 482°F (-20°C to 250°C)

Display Size/Format

3.0"/Landscape

Viewfinder

No

Measurement Modes

2 modes: 1 Spot (center); 1 Area Box (Min/Max)

Spot mode

Center/Fixed

Frame Rate

9 Hz

Field of View

45° x 34°

FOV Same as IR Lens

No

Optional Lenses

N/A

Focus

Focus Free

Continuous Auto Focus

No

Min. Focus Distance

1.6 ft (0.5m)

Radiometric JPEG via USB

Yes

Thermal palettes

3: Iron, Rainbow, and Gray

FLIR Tools for PC

Yes

Battery Operating Time

~4hrs

Built-in Digital Camera

640 x 480

Weight (including battery)

1.27 lbs (0.575 kg)

Drop (2 meter/6.6 feet)

Yes

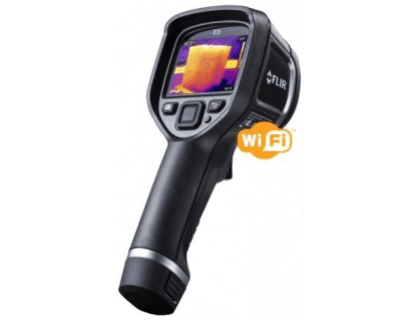

Flir E5 Nist Thermal Imaging Ir Camera W Wi Fi Msx 420X320 20190131
Review:

Pros: Wi-Fi connectivity. 3" LCD display screen. MSX technology.

Cons: No digital zoom or GPS.

Bottomline: An accurate, easy-to-use thermal imaging camera that is lightweight and durable.

Pricing:

The Flir E5 thermal imaging camera costs $1,549.00.

Flir E5-NIST Thermal Imaging IR Camera w/ Wi-Fi & MSX Box Contents:

  • Power supply/charger with four plugs
  • Rechargeable battery
  • FLIR Tools software
  • USB cable
  • Hard transport case

FAQs:

How can I share images from the Flir E5?

You can upload images from the Flir E5 to the Flir app so that they can be accessed from a smartphone.

Learn more about the Flir E5-NIST Thermal Imaging IR Camera.

What is the battery life like on the Flir E5?

The battery is rechargeable and lasts for up to four hours of continuous use.

See more information on the Flir E5-NIST Thermal Imaging IR Camera.

What is MSX technology on the Flir E5-NIST Thermal Imaging IR Camera?

Multi-Spectral Dynamic Imaging (MSX) technology on the Flir E5-NIST Thermal Imaging IR Camera uses visible details from digital camera photos to create sharper infrared images.

Get more information on the Flir E5-NIST Thermal Imaging IR Camera.

Can I use the Flir E5 to locate areas where heat may be escaping from a building?

Yes. Because the E5 is equipped with MSX thermal imaging technology, you can point it at walls, windows, and doors to see where heat might be escaping.

Find more details on the Flir E5-NIST Thermal Imaging IR Camera.

What is the Double Diamond protection offered by Flir?

Double Diamond protection by Flir is a warranty that covers your whole camera for 2 years, the battery for 5 years, and the detector for 10 years.

Read more about the Flir E5-NIST Thermal Imaging IR Camera.
