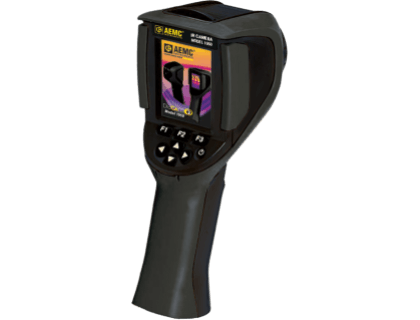

AEMC 2121.40 1950 Temperature/Infrared Imaging Camera

Learn more about the AEMC 2121.40 1950 camera with pricing information, features, and frequently asked questions.

Updated on February 5th, 2019

The AMEC 2121.40 1950 camera is an infrared thermal camera. The camera is equipped with technology that can sense hot and cold air coming from machines, even while they are running. The AEMC 2121.40 1950 can be used for industrial safety inspections.

Buy Now

AEMC 2121.40 1950 Temperature/Infrared Imaging Camera

Buy now on MegaDepot

Buy Now

Real-time thermal inspection.

Quick and easy setup via user interface.

Easy maintenance.

AEMC 2121.40 1950 Temperature/Infrared Imaging Camera Key Features:

Feature

Description

Detector Resolution

80 x 80

Detector Type

UFPA microbolometer, 8-14µm

Detector Frequency

9Hz

Thermal Sensitivity (NETD)

80mK @ 86°F (30°C)

Temperature Range

-4° to +482°F (-20° to +250°C)

Accuracy

± 3.6° F (±2 °C) or ±2% of Reading

Field of View

20° x 20°

IFOV (Spatial Resolution)

4.4mrad

Minimum Focus Distance

1.3ft (0.4m), fixed focus

Resolution

320 x 240

Images Displayed

Infrared image, visual image with automatic parallax compensation. Merging of both images is possible with included PC software

LCD Screen

2.8” (7.1cm)

Freezing of Image

Animated or fixed image

Adjustment

Automatic or manual adjustment of palette min-max

Display Colors

Pseudo-colors, multiple palettes

Measurement Tools

1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm

Parameter Settings

Emissivity, environmental temperature, distance, relative humidity

Voice Recordings

Via Bluetooth headset (included)

External Measurements

AEMC current clamps 407, 607 and Multimeters MTX3292 and MTX3293

Data Storage

2 GB micro SD card included (approx. 4,000 images)Replaceable with up to 32 GB SD card

Communication

USB link and Bluetooth

Tripod Mounting

1/4” insert on camera (tripod not included)

Software

CamReport software included, for data analysis and report generation

Power Supply

4 x AA (1.5V) alkaline or NiMH rechargeable batteries with charger included

Battery Life

13:30 hours typical (11 hours minimum)

Operating Temperature

-4° to 122°F (-15° to 50°C); 95% RH

Storage Temperature

-40° to 158°F (-40° to 70°C)

Dimensions

8.86 x 4.92 x 3.27” (225 x 125 x 83mm)

Weight

24.7 oz (700g) with batteries

Ingress Protection

IP 54

EMC

EN61326-1

Safety

IEC 61010-1 Ed. 02

AEMC 2121.40 1950 Temperature Infrared Imaging Camera
AEMC 2121.40 1950 Review:

Pros: Link to other devices with Bluetooth. Starts up in under 3 seconds. 13-hour battery life.

Cons: Expensive. Small LCD screen.

Bottomline: The AEMC 2121.40 1950 is a great choice for thermal imaging if you need to diagnose problems quickly and without shutting down equipment.

AEMC 2121.40 1950 Pricing:

The AEMC 2121.40 1950 thermal camera costs $1,420.25.

AEMC 2121.40 1950 FAQs:

How long does the AEMC 2121.40 1950 battery last? The rechargeable battery has a 13-hour life, at which point you can plug it in to recharge it.

What is the AEMC 2121.40 1950 used for?

This camera can be used for a variety of applications, including:

  • Finding water leaks.
  • Preventative maintenance.
  • Mechanical maintenance.
  • Analyzing buildings.

How many images can be stored on the device?

The AEMC 2121.40 1950 comes with a 2GB SD card that can store approximately 4,000 images. You can switch out the 2GB card for a larger SD card, all of the way up to 32GB.

What are some AEMC 2121.40 1950 alternatives?
